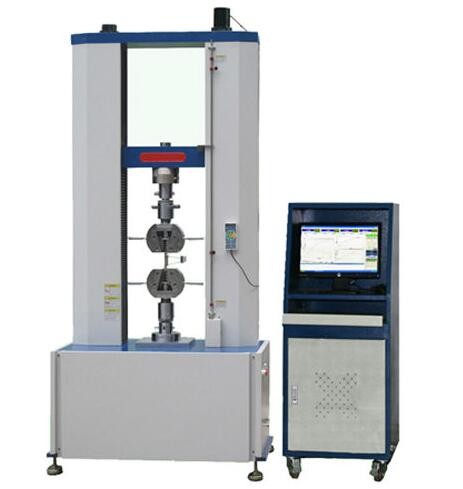

300KN Computer Servo Universal Material Tester
Equipment Summary:
Computer Servo Universal Material Tester is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.
Corresponding Standard:
GB/T16491-1996 electronic universal testing machine
Applicable Industry:
Computer Servo Universal Material Tester is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Technical Parameter:
| model | Computer Servo Universal Material Tester |
| Maximum load | 2ton,5ton, 10ton, 30ton,option |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2% to 100% (1 grade)/ 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Display the value ±1/Display the value±0.5 |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configurationsensormax load: one Extended configurationcan add more sensors |
| Effective testing width | 400mm(can be widened according to customers requirement ) |
| Effective tensile space | 1000,1200,1400mm can be increased the height according to customers requirement |
| Range of testing speed | 0.001~200mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
Deformation of measured system according to the requirements | Min span :10mmMax range of deformation 800mm Extended deformation : Min span: 25mm50mm100mm, range of deformation 5mm10mm25mm |
| Accuracy of measured deformation | Tolerance :±0.5 according to requirement of customer to choose the larger or small deformation |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Back to function of testing platform | Manual or automatic operationAfter the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 1070×560×2100mm(lenght*width*height) |
| Motor | Panasonic AC servo motor and drive |
| power | 220V50HZ |
| power | 0.75KWdepending on different demand of force, using different motor |
| weight | about 500Kg |
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
|
|
