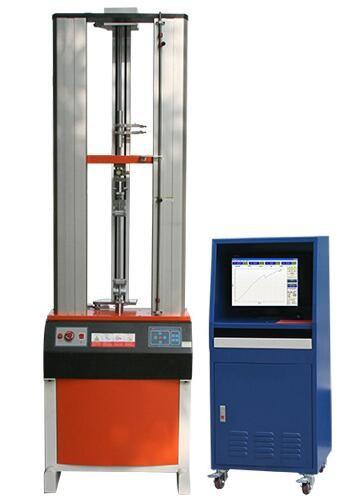

Multifunction Textile Seam Test Machine
Equipment summary:
Multifunction Textile Seam Test Machine is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rollable base station, makes it all very convenient. In particular, suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 1000N non-metallic and metallic materials within the test.
Multifunction universal testing machine is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.
Meet the criteria:
"GB/T16491-1996 electronic universal testing machine"
Application industry:
Multifunction Textile Seam Test Machine widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.
| Model | Multifunction Textile Seam Test Machine |
| Max load | 1KN, 2KN, option |
| Accurate grade | 1grade /0.5 grade |
| Effective measuring range | Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | the value ±1% / the value±0.5% |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configurationsensormax load: one |
| Effective testing width | 450mm (can be increased the width according to customers requirement) |
| Effective tensile space | 400, 500, 600mm (can be increased the space according to customers requirement) |
| Testing speed | From 0.001 to 500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| Deformation of measured system(according to the requirements ) | Min span :10mm, Max range of deformation 800mm Extended deformation span: 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control),can jog |
| Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 620*320*2100mm(lenght*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.2KW (depending on different demand of force, using different motor) |
| Machine weight | about 90 Kg |
Main features:
1. Good design.My company has been great emphasis on product appearance and
development of many models with comparable foreign products are
aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or
pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically
swap.
4.LCD liquid crystal display with backlight, can be used in
low-light environment.
5. Single determination, you can read the tension and compression
peaks in both directions, and automatic and manual reset;
6,With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate,
seating operation, easy and natural.
