electronic test equipment,tensile tester.
9 Years
| Ask Lasest Price | |
| Brand Name : | PTE |
| Model Number : | Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment WDW-20 20 kn |
| Certification : | CE |
| Payment Terms : | L/C, T/T, Western Union |
| Delivery Time : | wooden case |
Applications:

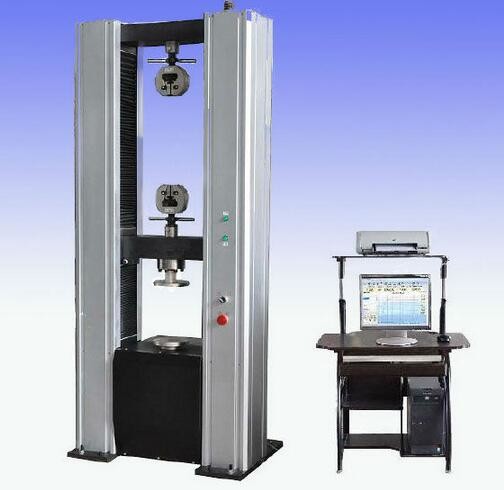

WDW20 Computer Control Electromechanical Universal Testing Machines
are designed and manufactured according to ASTM, ISO, DIN, GB etc
standards.
It is suitable for wide range of material for tension, compression,
bending, shearing and low cycle test. With special grips, it can
also do very special test as customer’s request.
| Model | WD-20 |
| Max. Load | 20KN |
| Load accuracy | ≤±1% |
| Load range | 2%-100% of full scale |
| Test speed | 0.01-500mm/min |
| Displacement resolution | 0.01mm |
| Effective test width | 570mm |
| Effective tensile space | 700mm |
| Dimension | 830×550×2000mm |
| Load frame type | Table type |
Main Accessories:
1. Mechanical wedge grip 1 set
Inserts for round specimen Φ4~Φ9mm, Φ9~Φ14mm, Φ14~Φ20mm, 1 set for
each
Inserts for flat specimen 0~7mm, 7~14mm, 7~21mm 1 set for each
2. Compression test attachment 1 set
3. Bending test attachment 1 set
4. High precision load cell 1 set Flat load cell +/-100kN, Tensile
& Compression type
5. Photoelectric encoder 1 set Measure the displacement
6. Extensometer Gauge length: 50mm, travel 25mm
7. Computer & printer & software 1 set Computer: LENOVA or Dell
Printer: Hp
8. Servo motor and Control system 1 set
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
|
|
