    Product Description

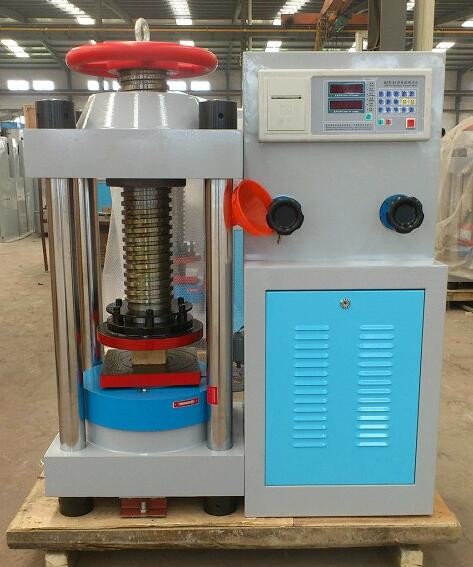

    Compression Testing Machine with Digital Display
    1.Description

    The testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed
    2.Main Specifications

    Maximum Capacity:1000 kN2000 kN
    Measuring Range0-1000 kN0-2000 kN
    Relative Error±1%±1%
    Platen dimension220mm×280 mm220mm×280 mm
    Max. Vertical clearance between platen330 mm330 mm
    Maximum travel of piston40 mm40 mm
    Diameter of pistonФ250 mmФ250 mm
    Rated pressure of oil pump40 Mpa40 Mpa
    Power supply220VAC 750W220VAC 750W


    3.Accessories
    1. Digital Display Controller
    2. Oil Flow Control Valve
    3. Oil Return Valve
    4. Oil Pump
    5. Motor
    6. O-ring
