Lifting Jack Hydraulic Compression Testing Machine

    Buy cheap Lifting Jack Hydraulic Compression Testing Machine from wholesalers

    Buy cheap Lifting Jack Hydraulic Compression Testing Machine from wholesalers
    • Buy cheap Lifting Jack Hydraulic Compression Testing Machine from wholesalers

    Lifting Jack Hydraulic Compression Testing Machine

    Ask Lasest Price
    Brand Name : PTE
    Model Number : Lifting Jack Hydraulic Compression Testing Machine
    Certification : CE
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : wooden case
    • Product Details
    • Company Profile

    Lifting Jack Hydraulic Compression Testing Machine

    Lifting Jack Hydraulic Compression Testing Machine
    Lifting Jack Hydraulic Compression Testing Machine

    Product Description

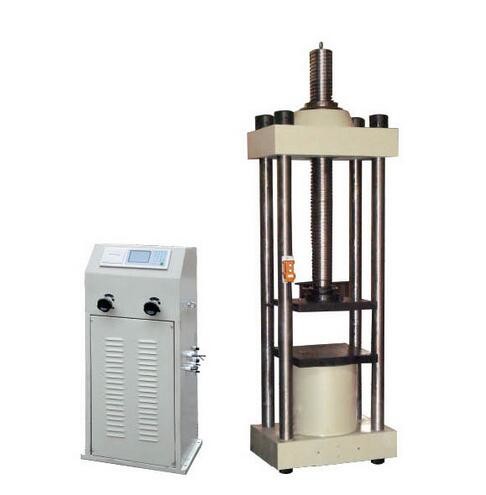

    PTE-3000 compression testing machine is mainly used to execute the lifting jack compression test, also can be used to execute the high strength concrete compression test.

    1, High performance load frame, with high stiffness and stability;
    2, Hydraulic loading, wide speed adjusting range;
    3, Digital display testing load, speed, peak value etc;
    4, with overload, over voltage, over current protection function;
    ModelPTE-3000
    Max. load3000KN
    Accuracy of testing force± 1% of indicated value
    Upper compression platen dia.500× 500mm
    Lower compression platen dia.500× 500mm
    Distance between two platens1000mm
    Piston stroke150mm
    Power supply380V± 10%, 50Hz, 3 phase
    Dimension700× 700× 2500
    Weight2200Kg
    Standard AccessoriesLoadframe, oil pressure sensor, digital meter, compression platen, manual







    Three Star Service :
    *First Star---Pre-service
    24 Hours online service for your consult
    Help choose right model,and a series of service,person,advise.
    *Second Star---Middle Service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
    . *Third Star---After serivce
    --1 year warranty service and all life maintenance.
    --Technical Egineer are avalible for oversea trainning.
    --Free change for some parts
    --Provide newest software vision when update
    --Remote control technical consult
    --Free installation DVD
    --Maintenance plan
