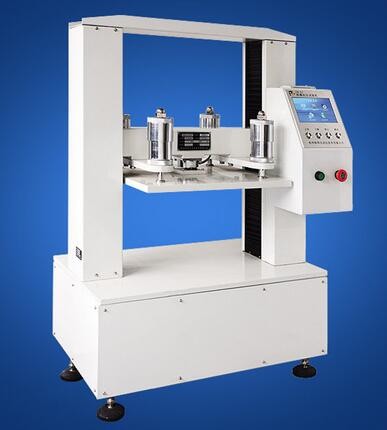

Carton compression strength testing machine
Introduction
ZB-KY carton compression tester is the essential testing equipment
to test the compressive strength of carton box. Adopted high
precise sensor, ARM chip, with powerful data processing function,
test process automatic tracking, the testing result is automatic
recording, real-time display test data and curve, and can
communicate with computer. Touch-screen display make the instrument
easy to operate, good appearance, and quick response
Standard
ISO12048 ISO2871 ISO2874 GB/T 4857.3 GB/T 4857.4
Main characters
(1)Strength test: To test the maximal strength of carton box
(2)Definite value test: The data can be preset to test the strength
and variant of the carton box
(3)Stacking test: Can have the stacking test within 12 or 24 hours
(4)Good design, adopted precise whorl and guide pillar which can
assure the stability
(5)Servo motor control, compression speed is10mm/min, and return
speed can get to 100mm/min
(6)Use high precision pressure sensor to make the measurement
accurate
(7)According to the user's need to design
(8)Touch-screen display
| Item | ZB-KY10 | ZB-KY50 |
| Power supply | AC220V±10% 50HZ | |
| Measuring range | (0.1-10)kN | (1-50)kN |
| Indication error | <±1% | |
| Platen size | 600*600mm (customized) | 800*800mm/1000*1000mm/1200*1200mm/1500*1500mm (customized) |
| Operating stroke | 600mm (customized) | 800mm/1000mm/1200mm/1500mm (customized) |
| Compression speed | 10mm/min | |
| Speed adjustment range | 2-100mm/min | |
| Track and force speed in stacking test | 2mm/min | |
